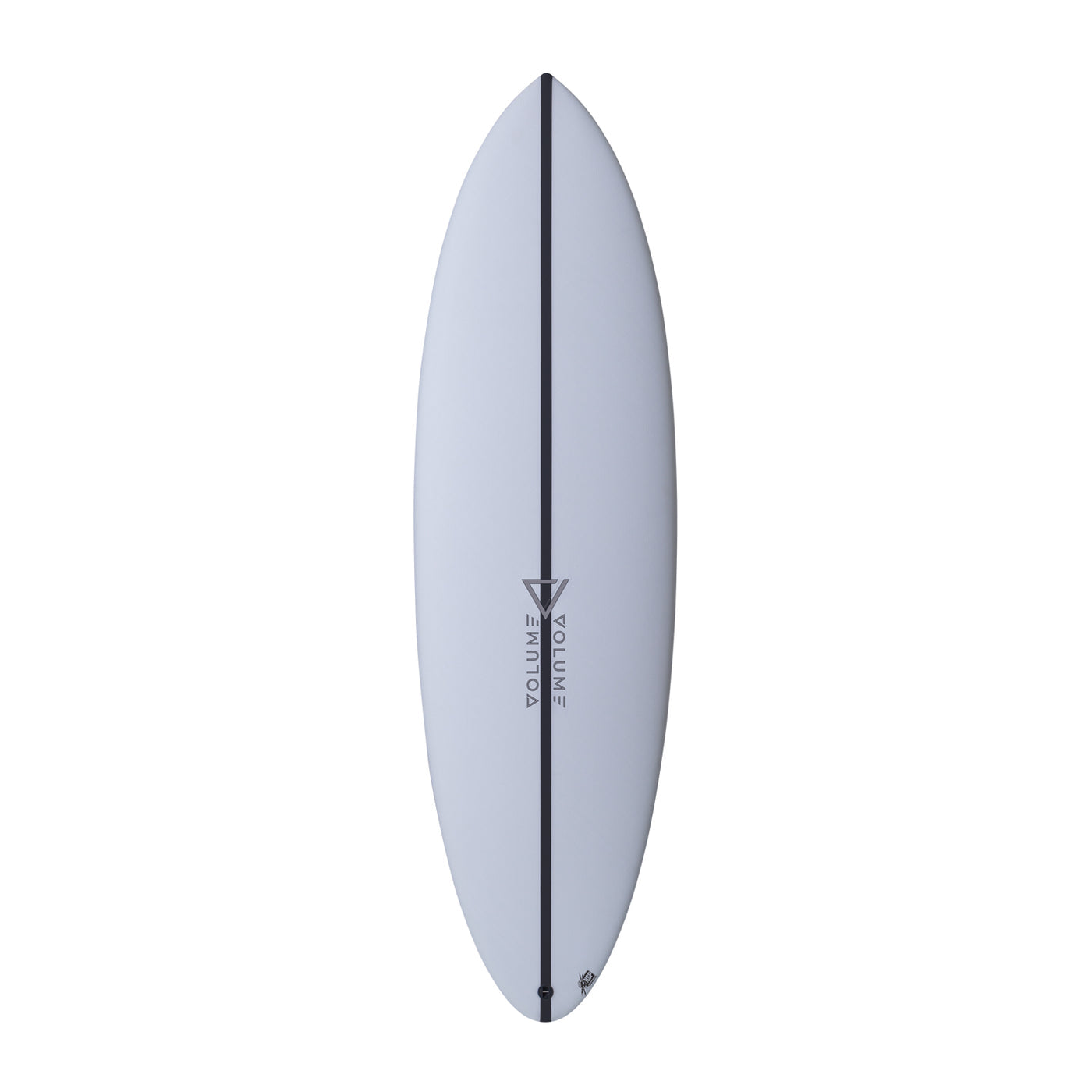

Volume Hybrid-X
Volume Hybrid-X
For stock availability email online@surfectionmosman.com
The Volume Hybrid-X is the third iteration of the Hybrid series with a focus on better paddle efficiency, start-up speed, and stability up front. With the wide point and thickness pushed forward to maximize foam distribution under the chest and towards the rails, this the best paddler of the Hybrid series.

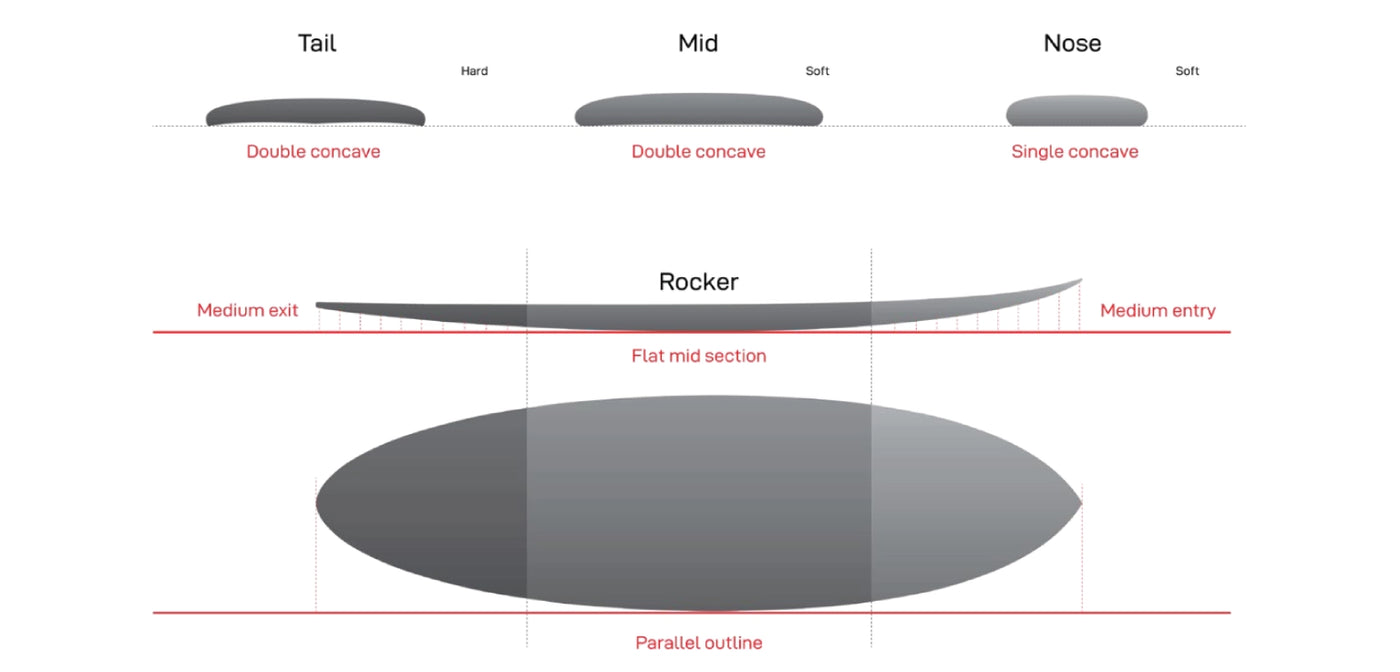

Rail: 50% Drive & Speed / 50% Pivot & Response

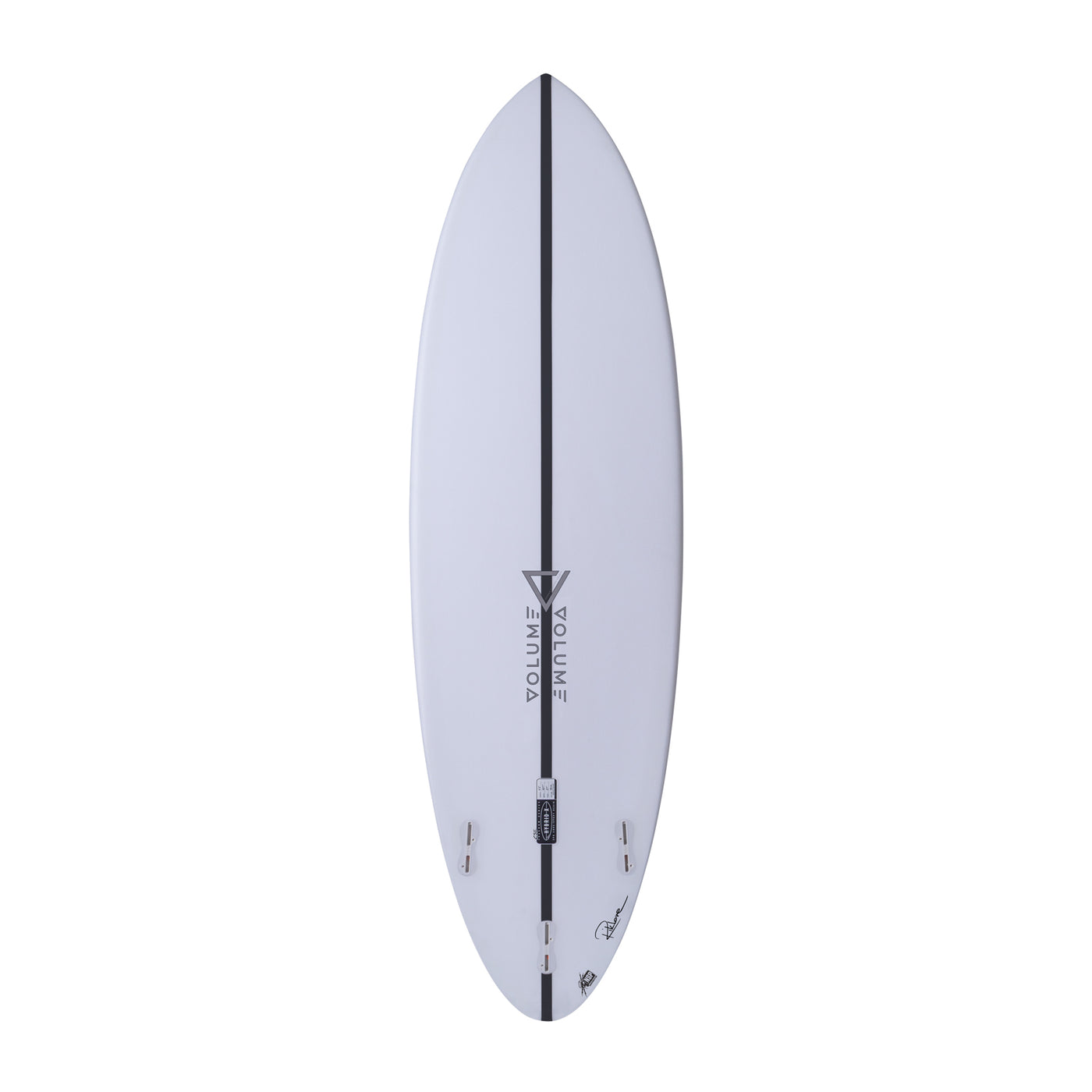

Contours: Front – Subtle Single Concave
Back – Subtle Single + Double Concave
Wave size: 1–6 Ft (Ankle High – Overhead)
NSP Volume Hybrid-X CSE Design

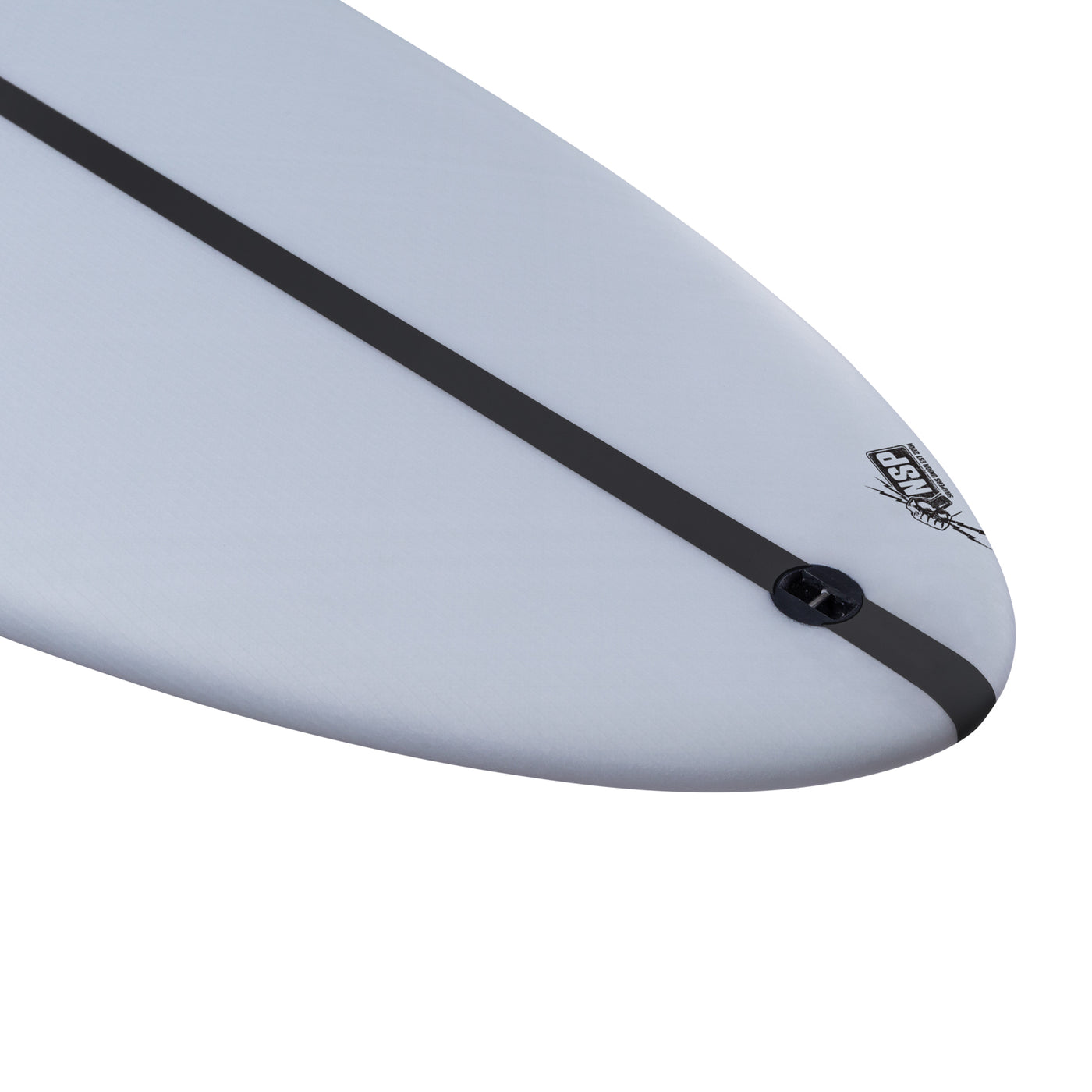

The design goal with the Hybrid-X was to create a board that paddled into waves really easy, then once up and riding, the back half of the board performs like a high performance shortboard. The tail measurement on this model is narrower compared to the Hybrid and Hybrid+, so when your back foot is planted over the fins, it will respond and turn on demand and also hold-in nicely when the waves are steeper and more powerful.

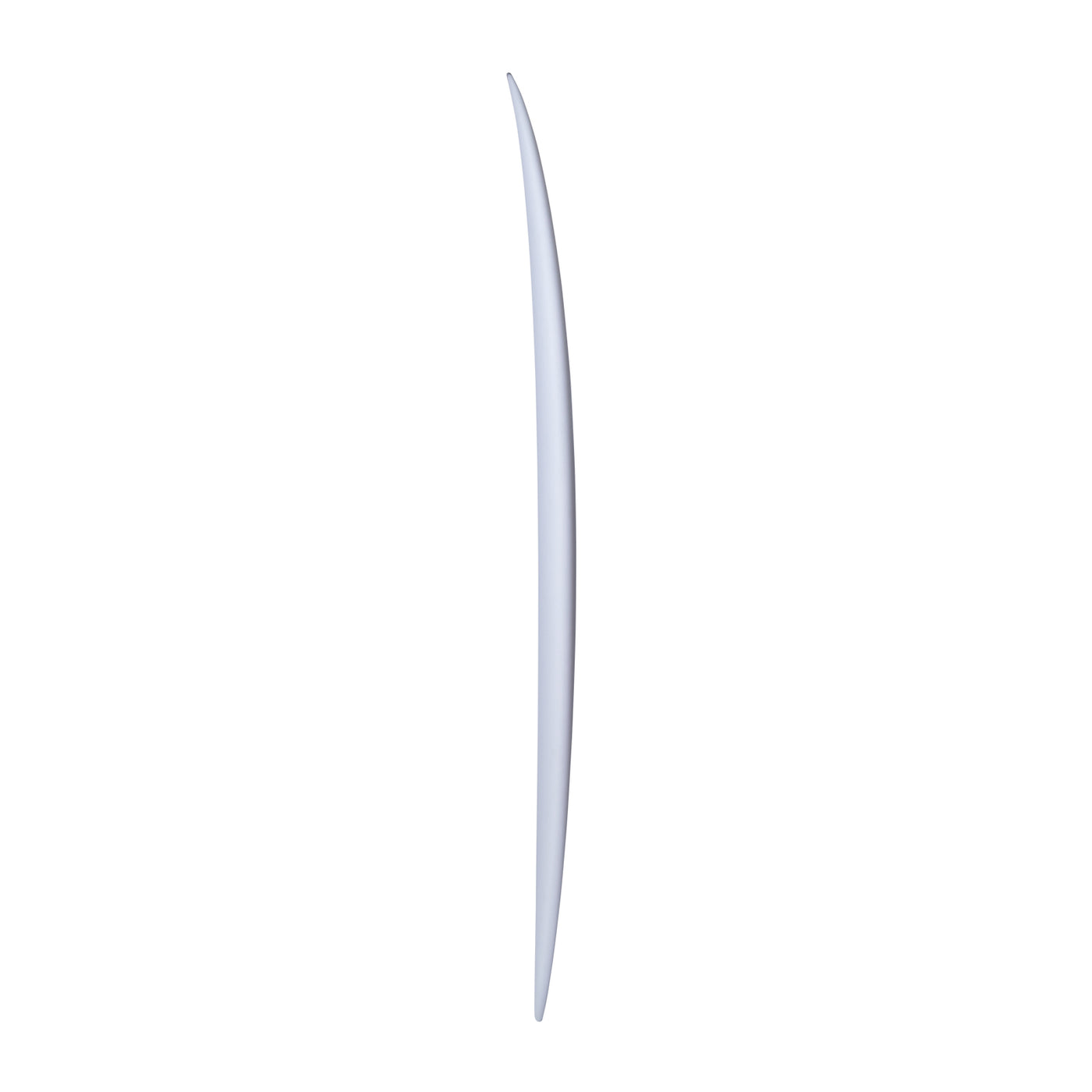

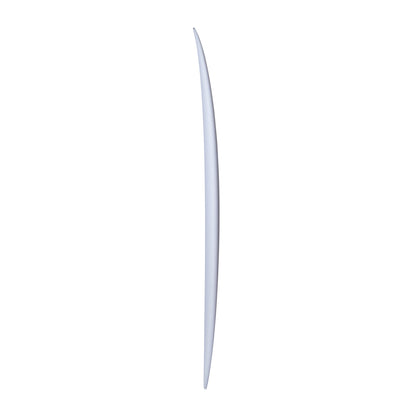

The entry rocker has been relaxed to allow for quicker start-up acceleration and speed from the take-off. This design tweak is also a bonus when the waves are flatter, and you have to work the board for speed. Lastly, the concaves have been softened to enhance the feelings of predictability and flow when transitioning from rail-to-rail.

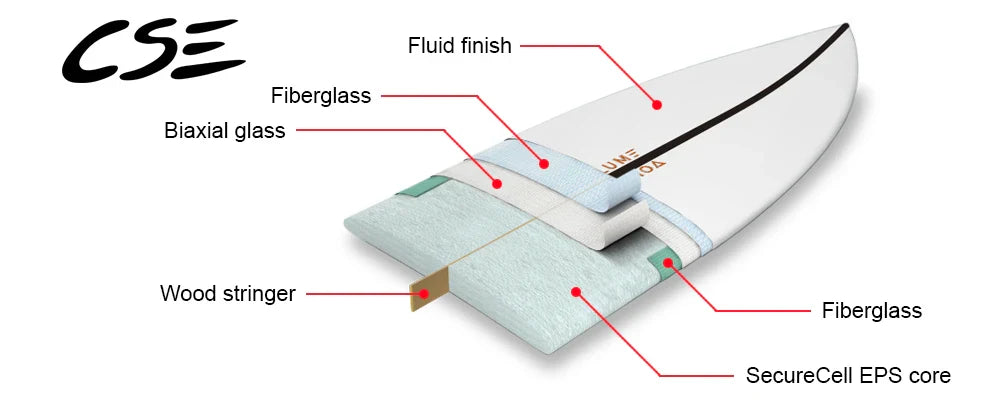

Construction
Built in NSP’s CSE construction with a stringered SecureCell foam core, which compliments the Volume Hybrid X perfectly to deliver a responsive, high-performance hybrid that suits all wave types offering the light tightly durability to match.
The Volume CSE range is built with NSP’s Custom Surf Epoxy (CSE) lay-up, featuring a CNC-cut 36g EPS core and a 3.6mm wood stringer. Laminated with full Biaxial fibreglass (220g), it incorporates a 4oz deck and a 4oz fin patch. Finished with a clear UV-stable resin and a satin rub, this construction delivers a durable craft with excellent flex, responsiveness, and a lightweight feel.
The epoxy resin, advanced custom layup and EPS core offer a responsive flex pattern. This enhances your connection to the wave without compromising response or feel.

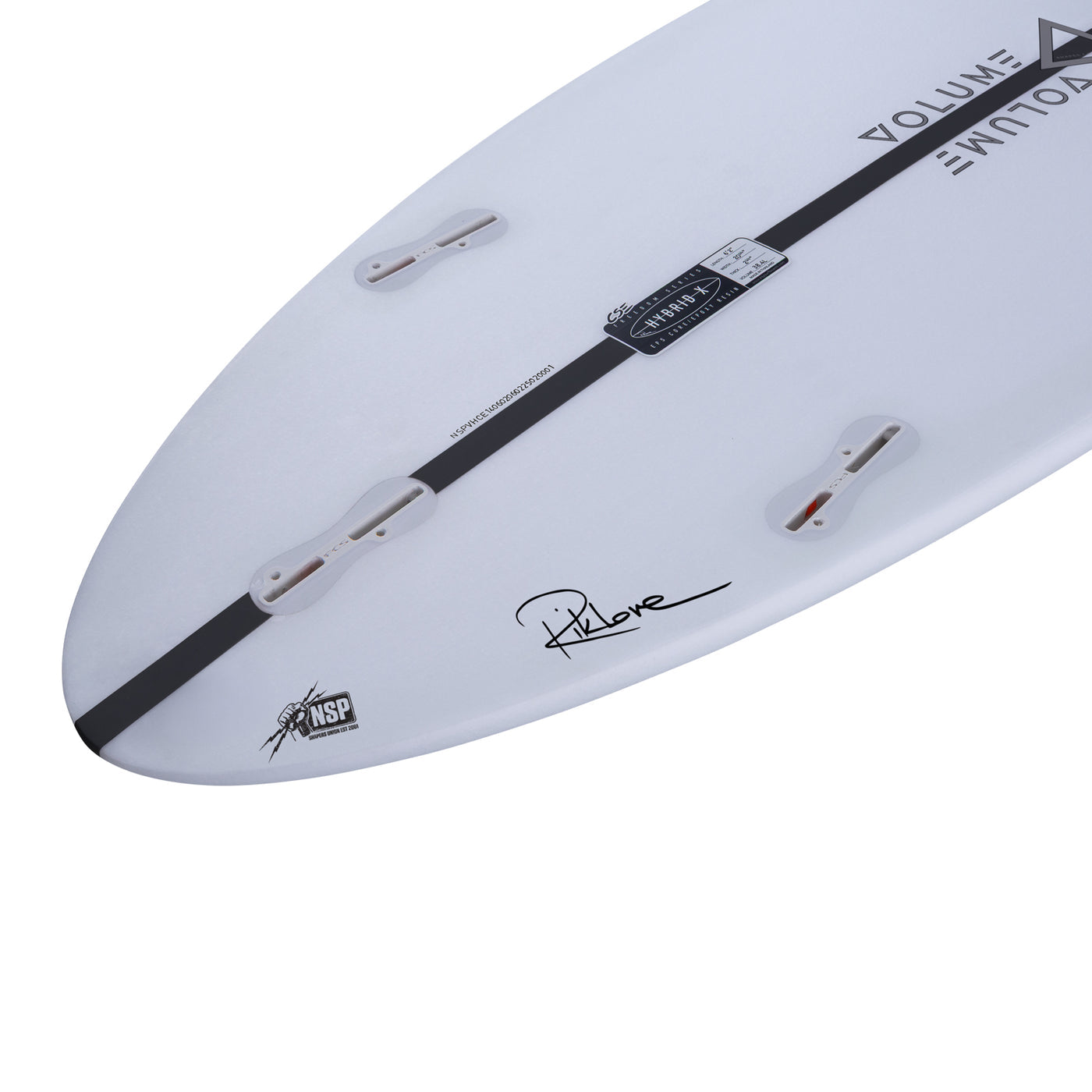

Fin recommendation:
FCS II Accelerator or Toledo (Predictable feel with added control)
FCS II Reactor (Ideal for perfecting tighter turns)
Length | Width | Thickness | Volume | Weight +/- 5% |
---|---|---|---|---|
5'10" | 20 1/4" | 2 5/8" | 33.7 L | 2.74 Kg EST |
6'0" | 20 1/2" | 2 11/16" | 36.0 L | 2.91 Kg EST |
6'2" | 20 3/4" | 2 3/4" | 38.4 L | 2.98 Kg EST |
6'4" | 21" | 2 13/16" | 41.0 L | 3.17 Kg EST |
6'6" | 21 1/4" | 2 7/8" | 43.6 L | 3.27 Kg EST |
